• NOTES about the Portland Group Fortran installed on moe:
  • General entry point for Portland Group documentation of their pgf90.
  • Fortran reference manual a .pdf format file maintained at the Portland Group site see table of contents of list of intrinsic functions (at one time was p. 177).

• NOTES about the homework:
  • Turn in:
    1. Print outs of all plots, character output, & your program file
    2. Attach to an email all listing files created by the compiler options specified next:
  • Use compiler options to create a listing. Preferably, one that checks bounds and cross references. The resultant file has a lower case "L" as the extension (suffix). A typical compiler command is illustrated below for the ncar graphics library using FORTRAN 77:

    • Similar to Problem set 6 (except 101 pts in x and in y):

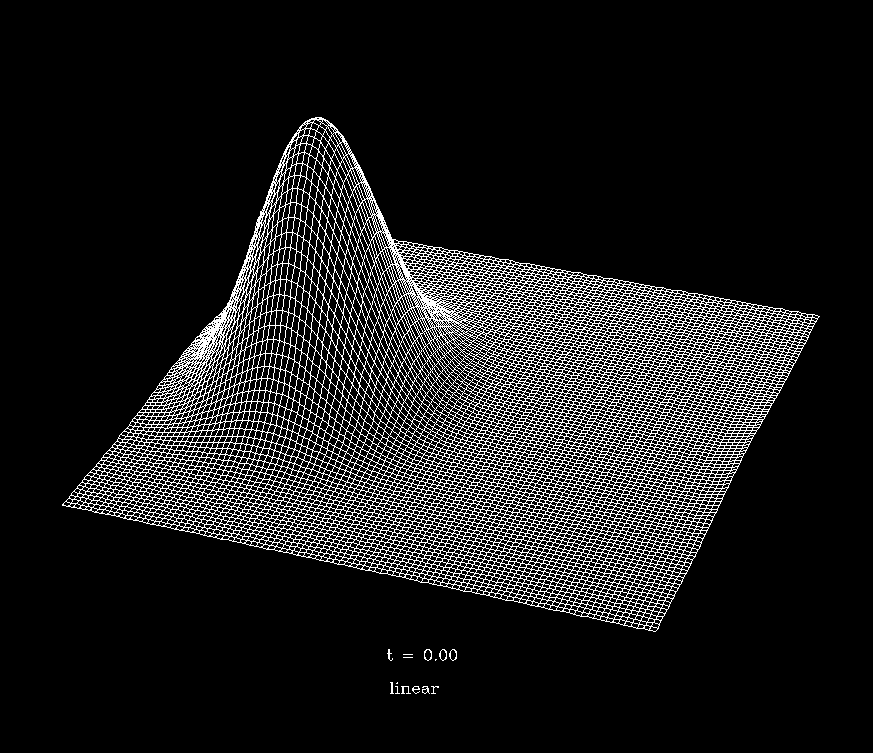

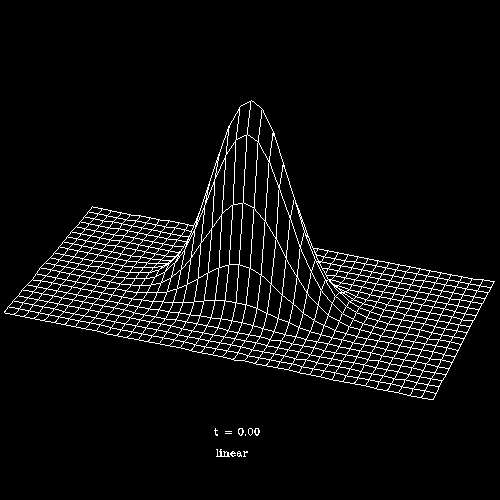

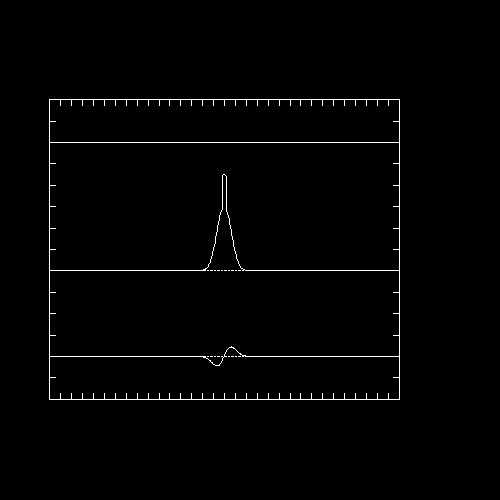

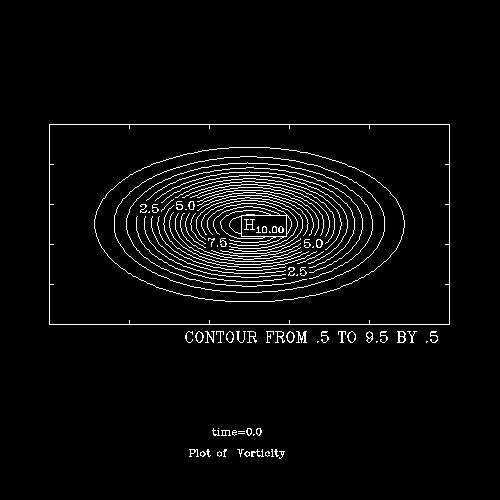

      Initial Condition in .gif format.

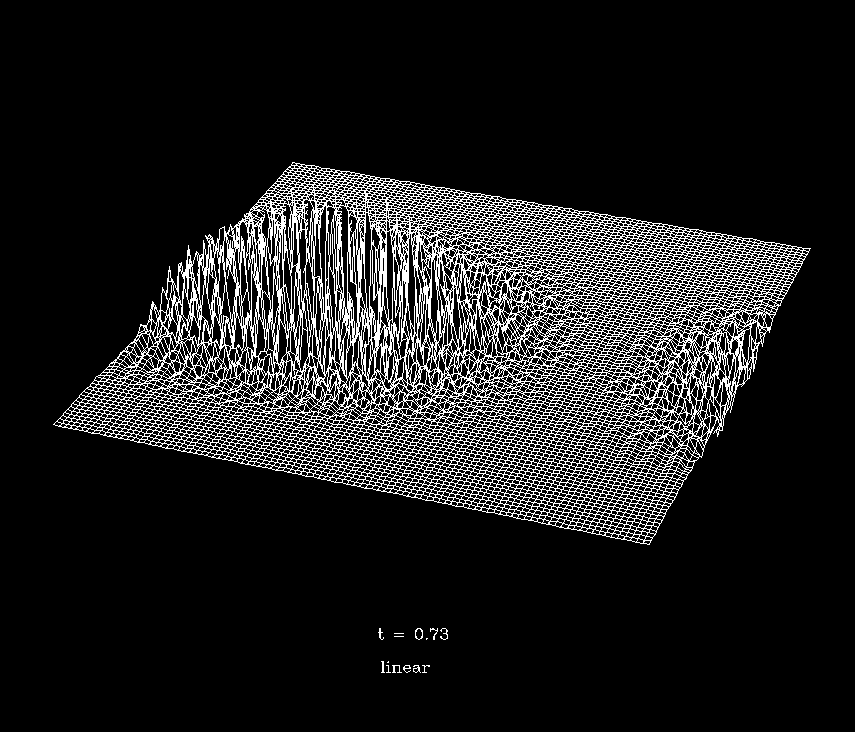

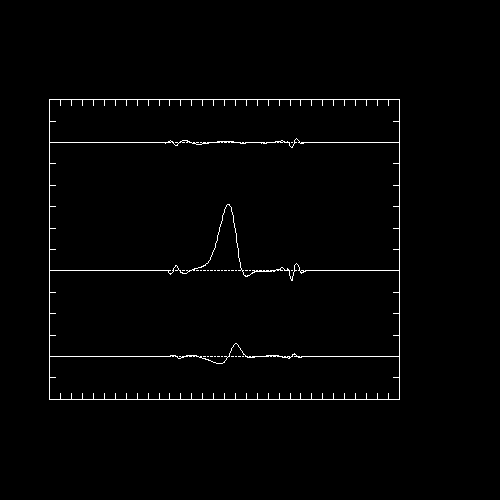

      Unstable sigma=2./1.8 at t=0.73 units in .gif format.

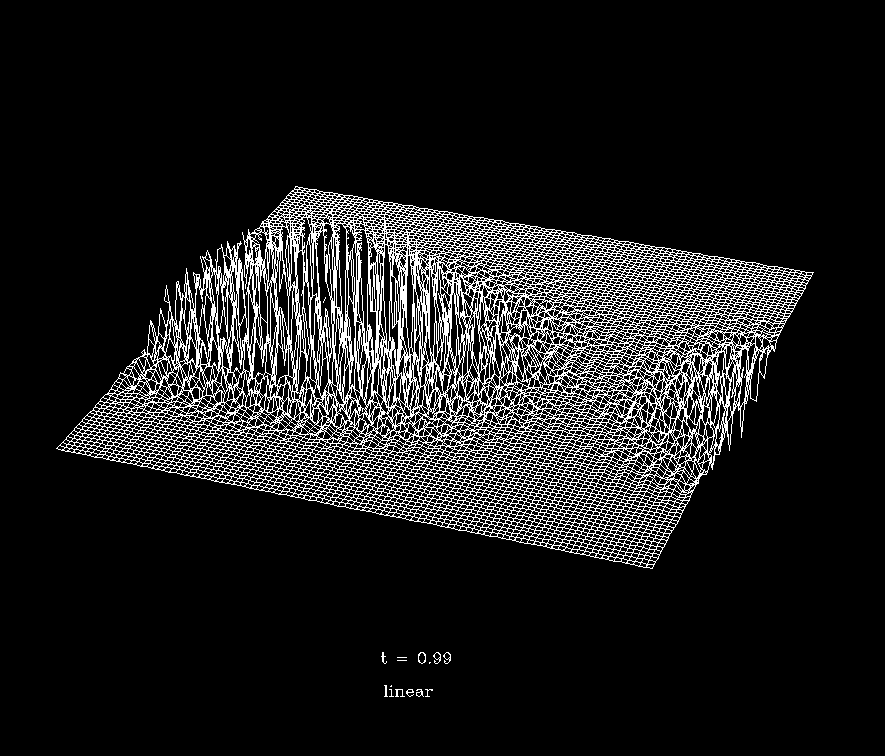

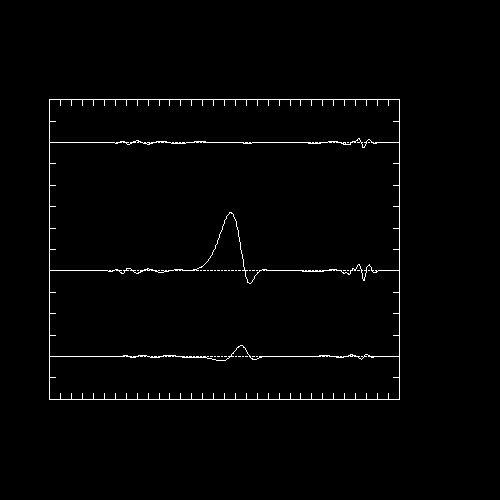

      Unstable sigma=2./1.8 at t=0.99 units in .gif format. Notice that the mess doesn't move, but it does grow a lot.

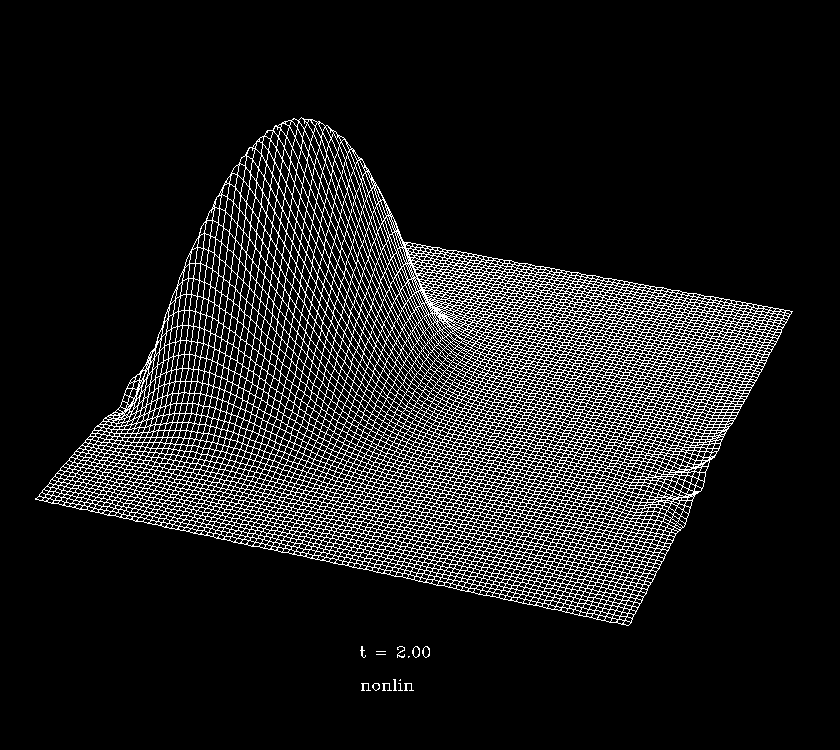

      nonlinear calculation at t=2.00 in .gif format.

    Items below this point not yet updated for 2005.
    Please be patient!


    ncargf77 -V -show xref -check bounds template.for

    where template.for is the file being compiled. Gives a verbose output with some other useful diagnostics.

• Problem Sets and Selected Solutions:
  1. Problem set 1:
     Assignment 1 in MS Word .doc format.
     fortran file demo_ptline.f Illustrates some simple text I/O and NCAR Graphics calls to a symbol plotting routine and to a line-drawing routine. (text file format)
     plot of demo_ptline.f output File is in NCAR graphics metacode!

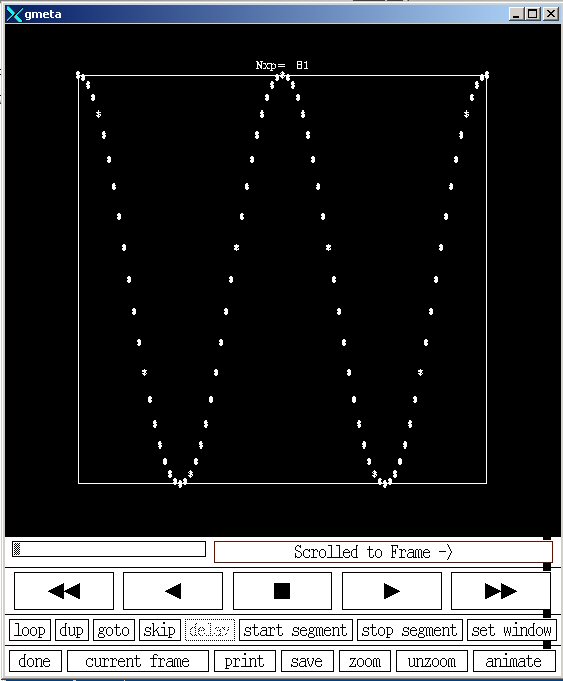

     plot of demo_ptline.f plotted output in idt window file in .jpg format

  2. Problem set 2:
     Assignment 2 in MS Word .doc format.

  3. Problem set 3:
     Assignment 3 in MS Word .doc format.

  4. Problem set 4:
     Assignment 4 in MS Word .doc format.

  5. Problem set 5:
     Assignment 5 in MS Word .doc format.

  6. Problem set 6:
     Assignment 6 in MS Word .doc format.
     fortran file demo_contour90.f Illustrates NCAR graphics with a contour-drawing subroutine. (text file format)


     plot of demo_contour90.f output File is in NCAR graphics metacode!

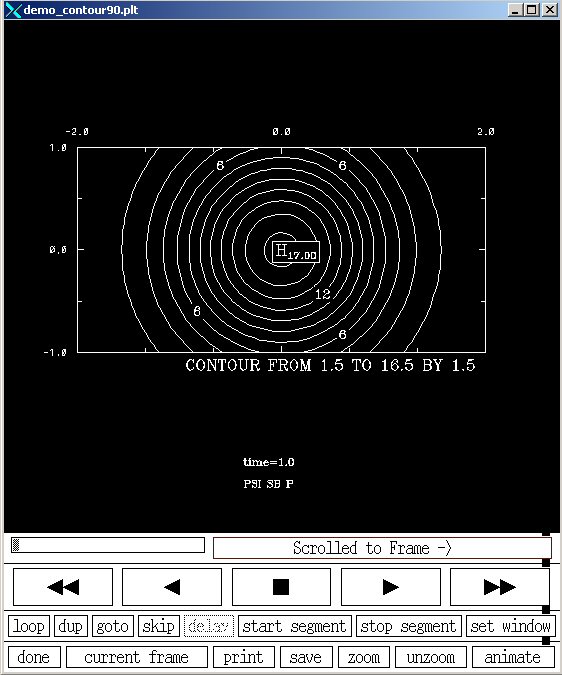

     first plot of demo_contour90.f plotted output in idt window file in .jpg format

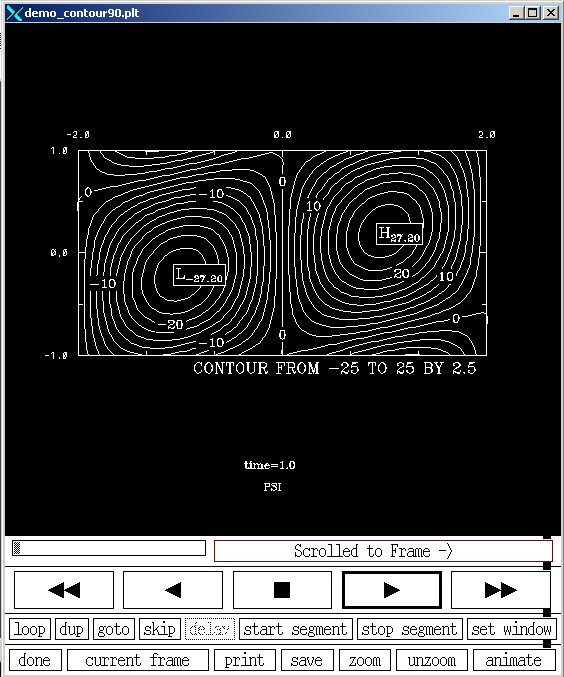

     second plot of demo_contour90.f plotted output in idt window file in .jpg format

     • A .gif movie of a linear solution for sigma=0.5. and
       0 <= t < 2.
     • A .gif movie of a NONlinear solution for advection speed = 2 - df/dy     and
       0 <= t < 2. dt=0.005

       To see the solutions in a new window, use the links below (under construction):

       • linear solution gif movie
       • NONlinear solution gif movie

  7. Problem set 7:
     Assignment 7 in MS Word .doc format.

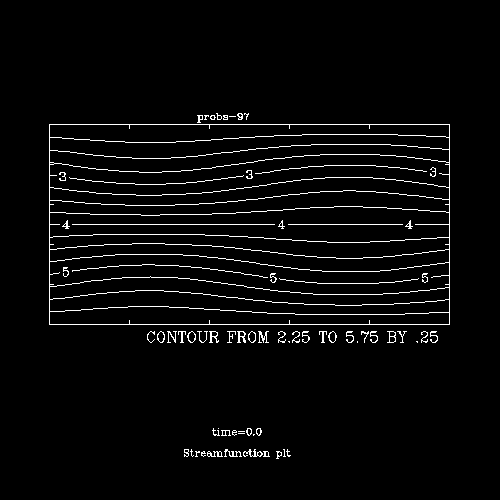

     • The specified streamfunction
     • A time sequence of the vorticity field

  8. Problem set 8:
     Assignment 8 in MS Word .doc format.

     ******* updated for 2003 to here *********

  9. Problem set 5:
     • Note: the plots below may not be identical to those you obtain. They are presented here for general guidance.

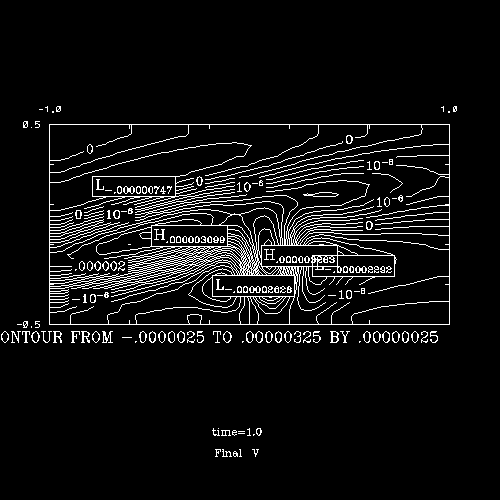

       The top plot is "V" velocity, the bottom plot is "U" velocity. The velocity values have been increased in scale by a factor of 10 to make them visible. The middle plot is "h" elevation.
     • Input: initial condition
     • Input: solution at a middle time
     • Input: solution at the ending time

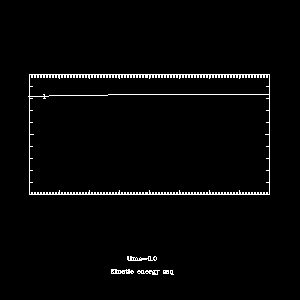

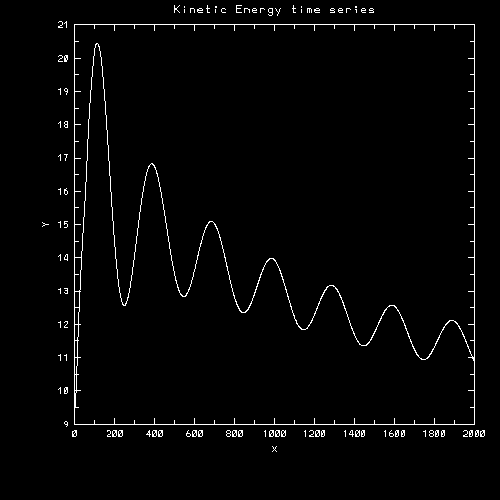

     • Output: time series of kinetic energy

  10. Problem set 6:
      • Note: the plots below may not be identical to those you obtain. They are presented here for general guidance.

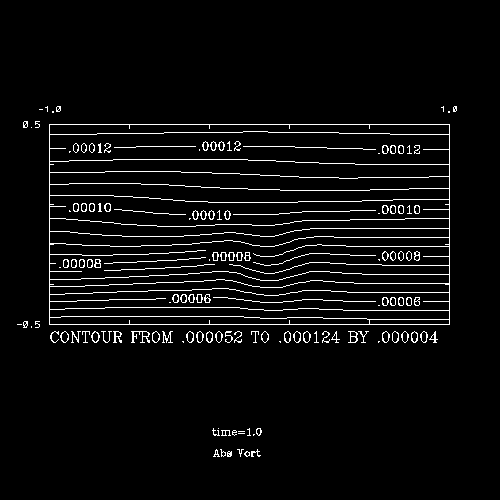

      • Input: absolute vorticity
      • Input: relative vorticity

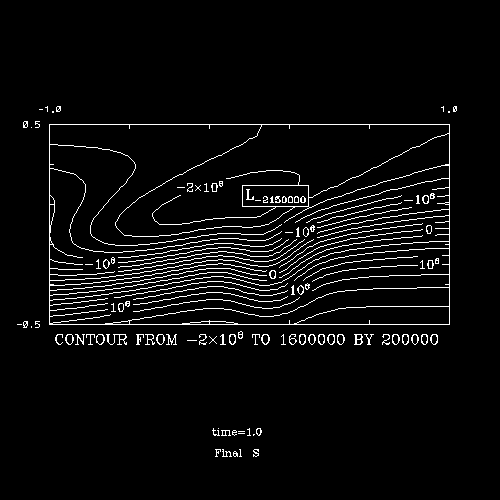

      • Output: stream function

      ---

      - - - - - - Solutions from 1999 course offering are below - - - -

      ---

  11. Problem set 6:
      Nonlinear barotropic vorticity equation runs:

      Labwork 1999 (tilted trough with leading ridge):

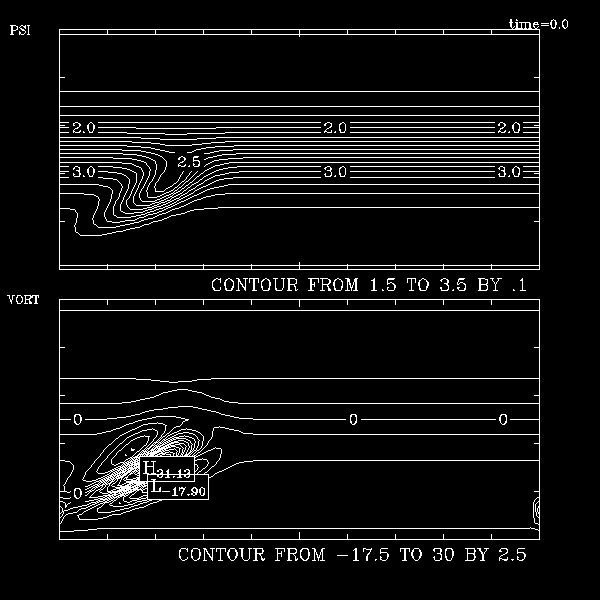

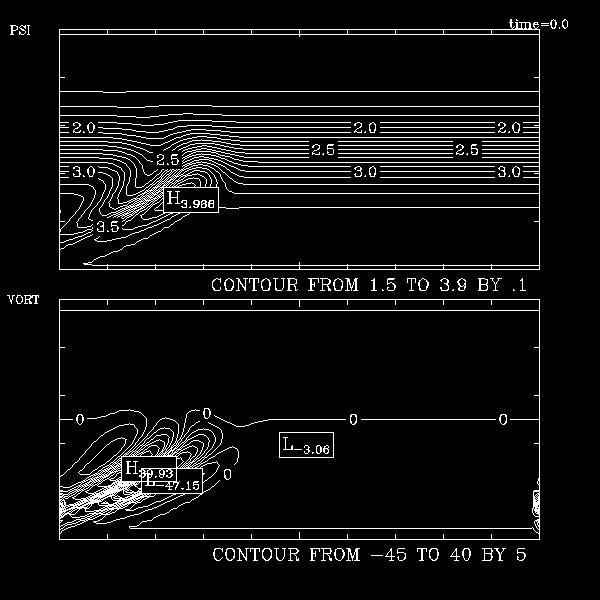

      • Output: Time sequence of stream function and vorticity

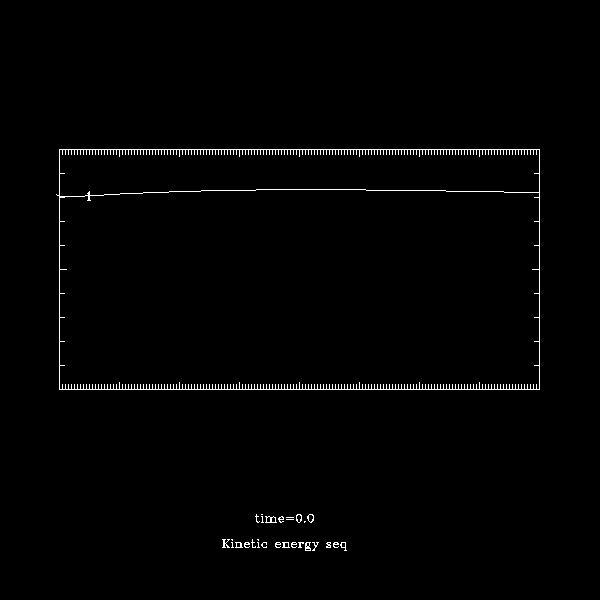

      • Output: Time series of volume average kinetic energy

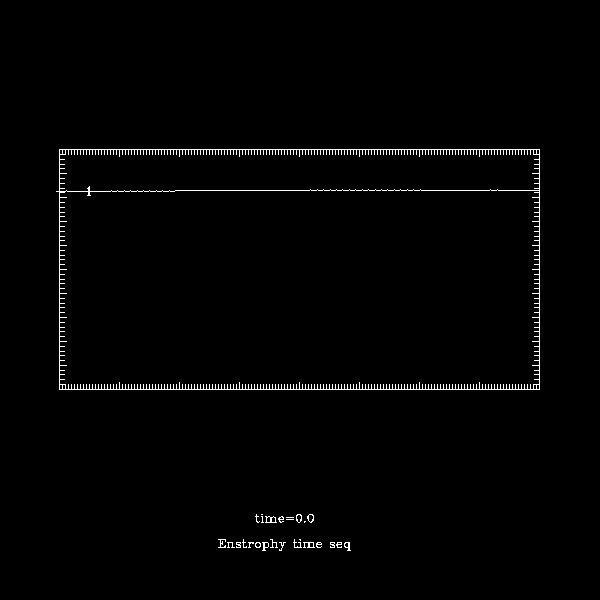

      • Output: Time series of volume average enstrophy

      Another example (1 tilted trough):

      • Output: Time sequence of stream function and vorticity
      • Output: Time series of volume average kinetic energy
      • Output: Time series of volume average enstrophy

  12. Problem set 7:
      Testing FFT:
      • Input: function

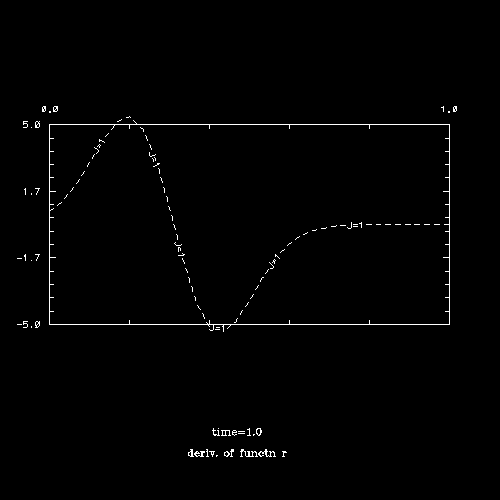

      • Input: derivative of the function taken analytically.

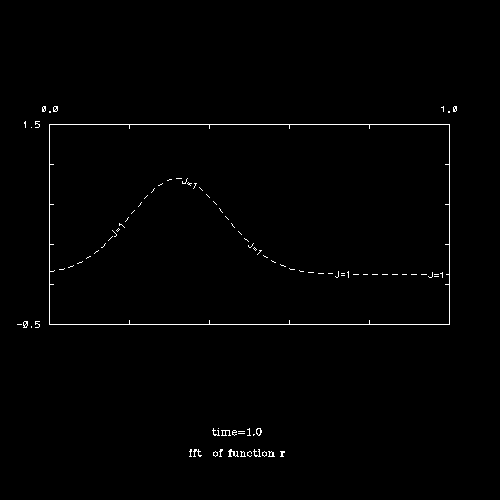

      • Output: function (from forward then back transform)

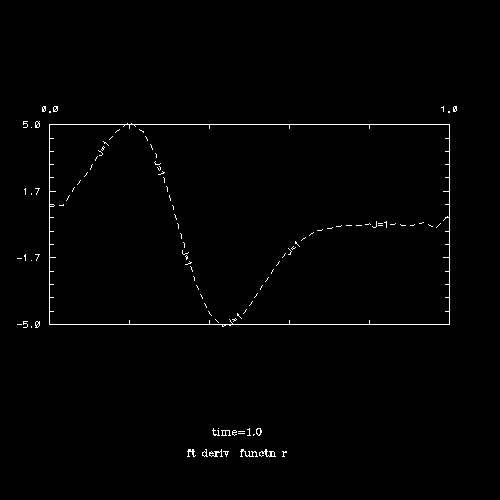

      • Output: derivative of function (from forward then back transform, with derivative taken in phase space)

  13. Problem set 8:
      1-D advection eqn with spectrum:
      • Input: initial condition

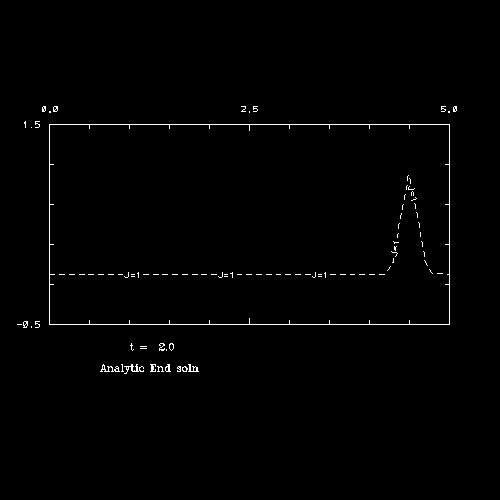

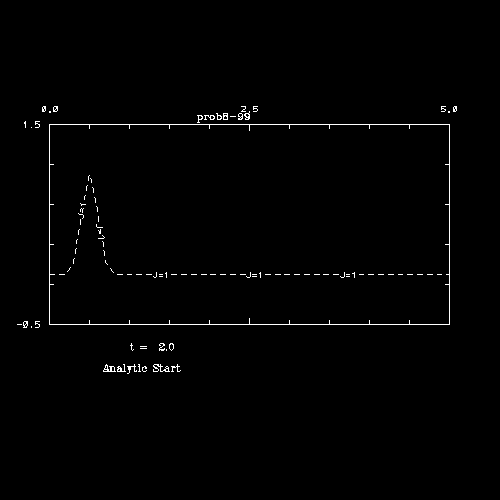

      • Output: analytic final condition

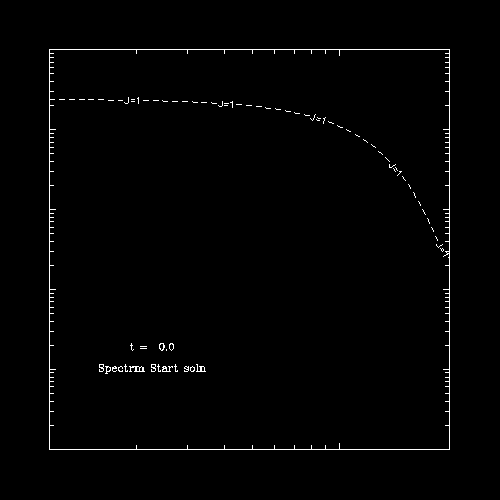

      • Output: initial condition spectrum

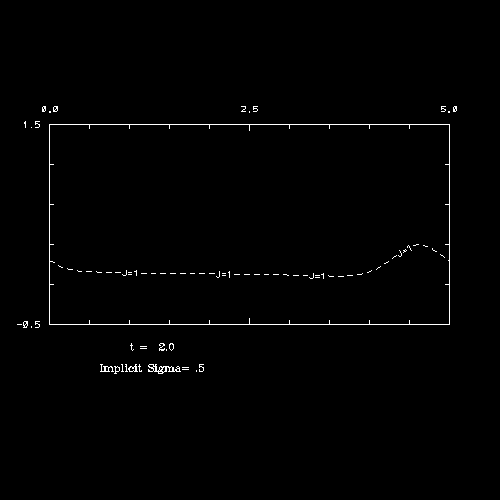

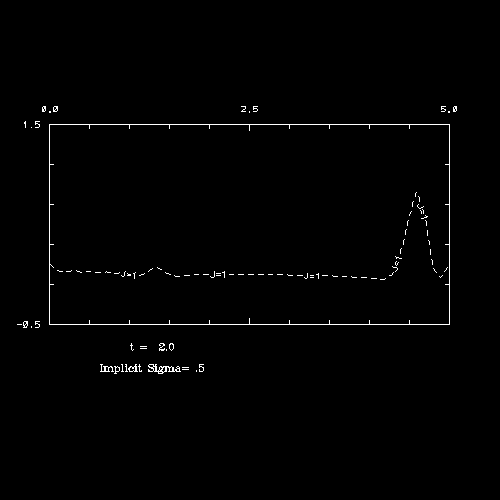

      • Output: final condition using Euler Backward

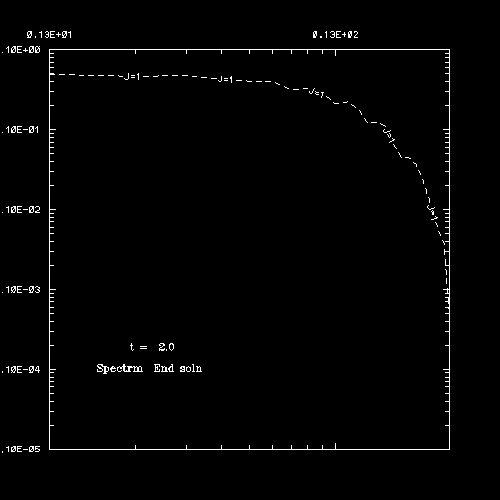

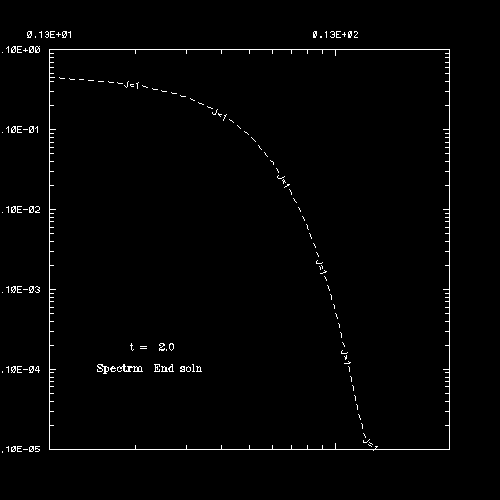

      • Output: final condition spectrum using Euler Backward

      • Output: initial condition spectrum Leap frog.
      • Output: final condition using Leap Frog
      • Output: final condition spectrum using Leap Frog

  14. Problem set 9:
      KE Spectrum in BVE model:
      • Output: time sequence of stream function and vortiticy at 0.5 units of time.

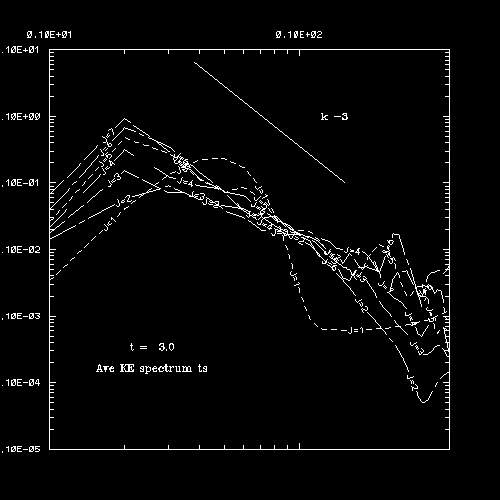

      • Output: meridional component KE spectrum at 0.5 units of time.

• Other Calculations:
